vmsTRACK-PRO-CS

AIS tracker for ships and objects

Permanent real-time location and monitoring of ships and moving objects in a special designated area using VHF technologies.

The system allows persistent locating and monitoring of vessels and moving objects in a special area via VHF technologies. The vmsTRACK-PRO-CS is working with CSTDMA Class B transmission functionality. CSTDMA is the abbreviation for “Carrier Sense Time Division Multiple Access”, which is used for AIS Class B units. The vmsTRACK-PRO-CS operates on the principle “listen before talk”. If a transmission is due, the transceiver watches the dedicated slot and if there is no transmission in the slot from a Class A transceiver, then the CSTDMA unit starts transmission on its own in this slot.

Palm-sized for every request

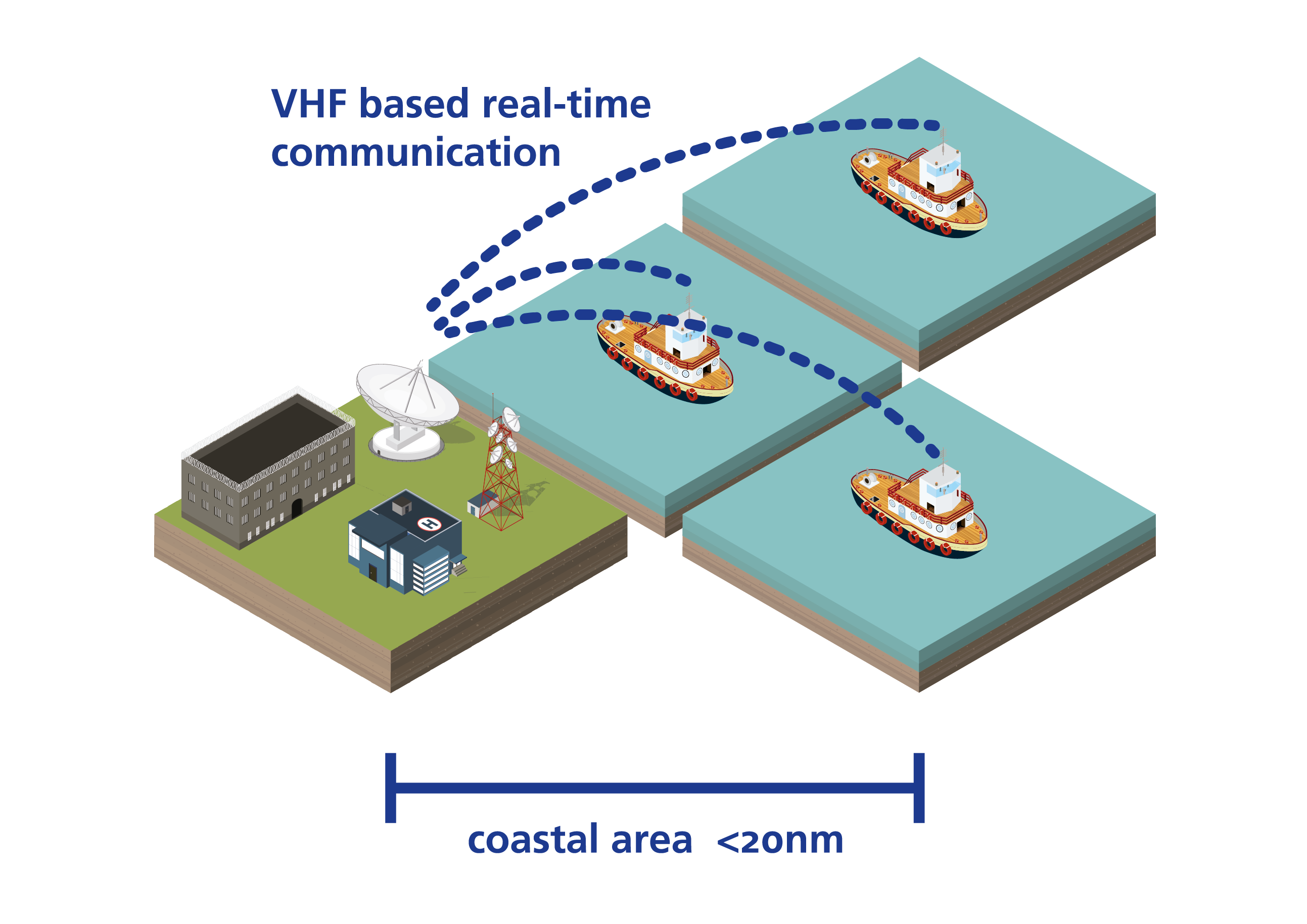

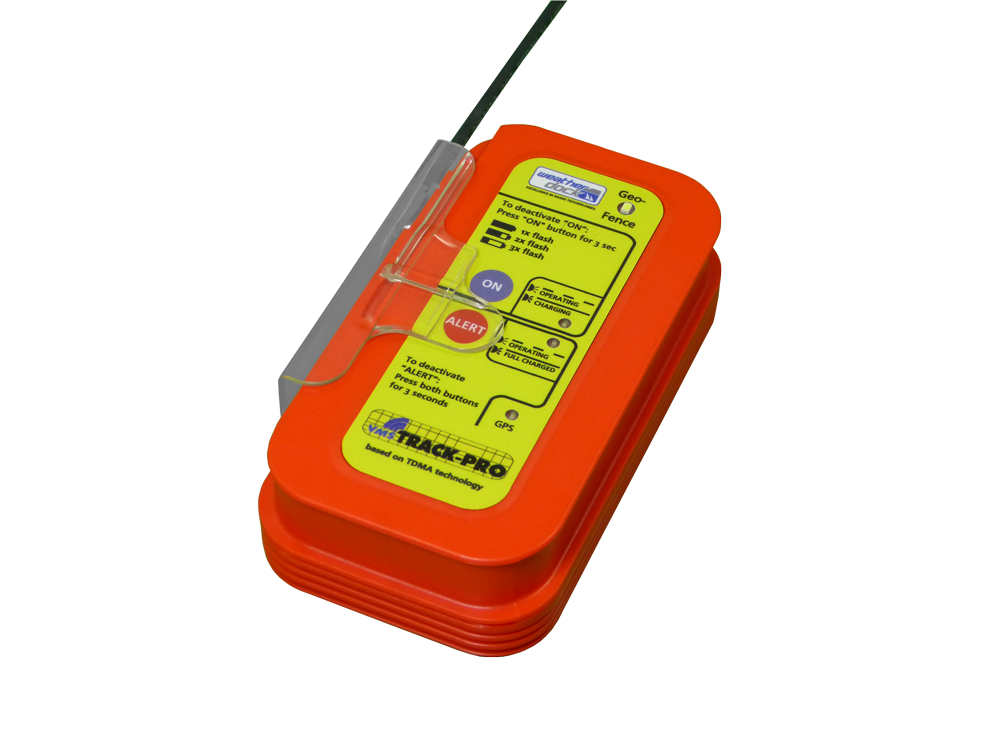

The vmsTRACK-PRO-CS is a small portable “grab’n’go” position transmitter, which broadcasts in a pre-set time interval via VHF radio frequencies. The unit is ideal for coastal fishing fleet, movement monitoring of harbour vessels, small target tracking and pleasure boaters tracking. It is suitable for fishermen, vessels, leisure boats, ski jets, harbour crafts, pilot vessels, etc. The system is expandable to a full target management system. With the usage of the vmsTRACK-PRO-CS real-time-tracking system, a radar-less traffic monitoring system for economic application is possible. By means of the transmission, information about current GPS position as well as curse and speed over ground of the object, real-time-tracking and monitoring of  objects is possible for a base station. Such a base station only needs a special tuned receiver unit to get these position reports, if customized frequencies are used. The creation of a “closed user group” is possible with such a system, in which only the base station has the permission to look into, thanks to these customized frequencies. The vmsTRACK-PRO-CS is also able to run on regular AIS frequencies which makes a special tuned receiver needless.Geo fencing possible

Special areas can be programmed into the unit (not to enter or not to leave). They are called “Geo-Fence-Areas”. The vmsTRACK-PRO-CS unit gives visual alerting by flashing LED if this geo-fence-function is triggered and a special information message is immediately sent to the base station. Only the base station will be able to interprete this message.

Intelligent tamper-proof solution

If the unit is stolen or tampered, an intelligent high tech solution will trigger a flashing LED to inform the vessel’s Captain. A special message is also sent to the base station. This special message is sent within the normal position report, but only the base station can decode it.

“Who and Where” for coastal security and fleet management

The real-time-knowledge of “who and where?” is very important in administration of coastal fishing fleets, as well as in coastal boarder security issues. By transmission of special names and unit IDs, “friend or foe” identifying is possible.

Additional emergency distress button

The small vmsTRACK has got an additional emergency distress button. By triggering the alert function, additional to the regular position report on special frequency, according to customer’s specification and with approval of the national authority, an official emergency message will be sent out on both regular AIS frequencies to reach every AIS receiver within transmission range of the vmsTRACK.

Basic needs fulfilled

This small device is waterproof to a depth of 10 meters.

Customized

Individualization of vmsTRACK units

The vmsTRACK units can be individualized by means of programming ship name, type of vessel as well as area of activity into the unit for transmission. The pre-set time interval is free to definee: each second up to 1 time per hour, everything is possible. The bigger the time gap is, the longer the battery capacity will be. E. g. once per minute will last for a couple of days. The power supply for the vmsTRACK unit on a small fishing vessel can be done by solar panel. This will continuously charge the transmitter.

BLUETOOTH® connection

On special request the vmsTRACK-PRO-CS go with integral BLUETOOTH®LE modul for special applications.

Remote Control

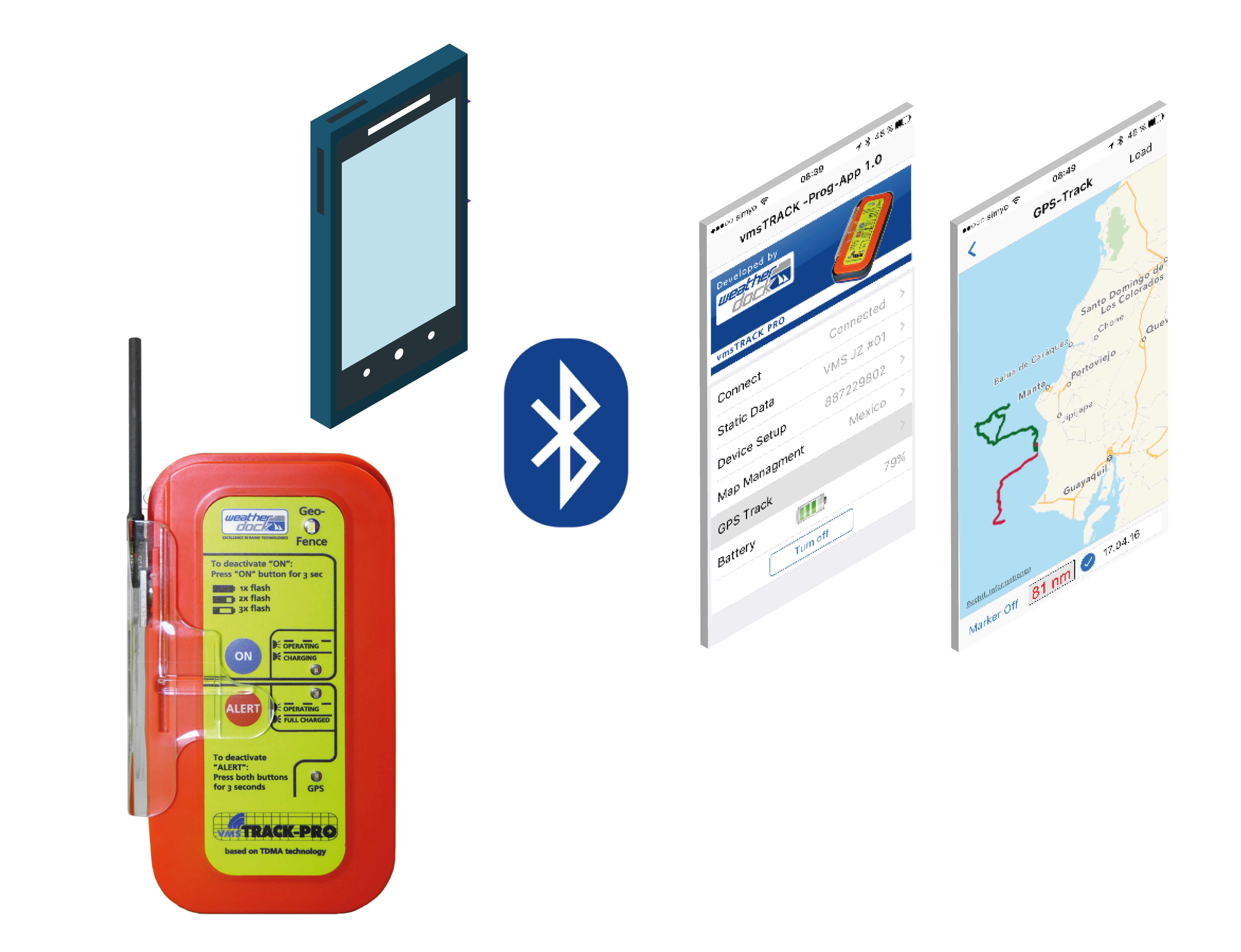

Using the BLUETOOTH®LE connectivity on your smartphone, it is possible to remote control the vmsTRACK-PRO-CS (push buttons) and to see the status (LED display).

Android® and IOS® apps are available to use this functionality.
