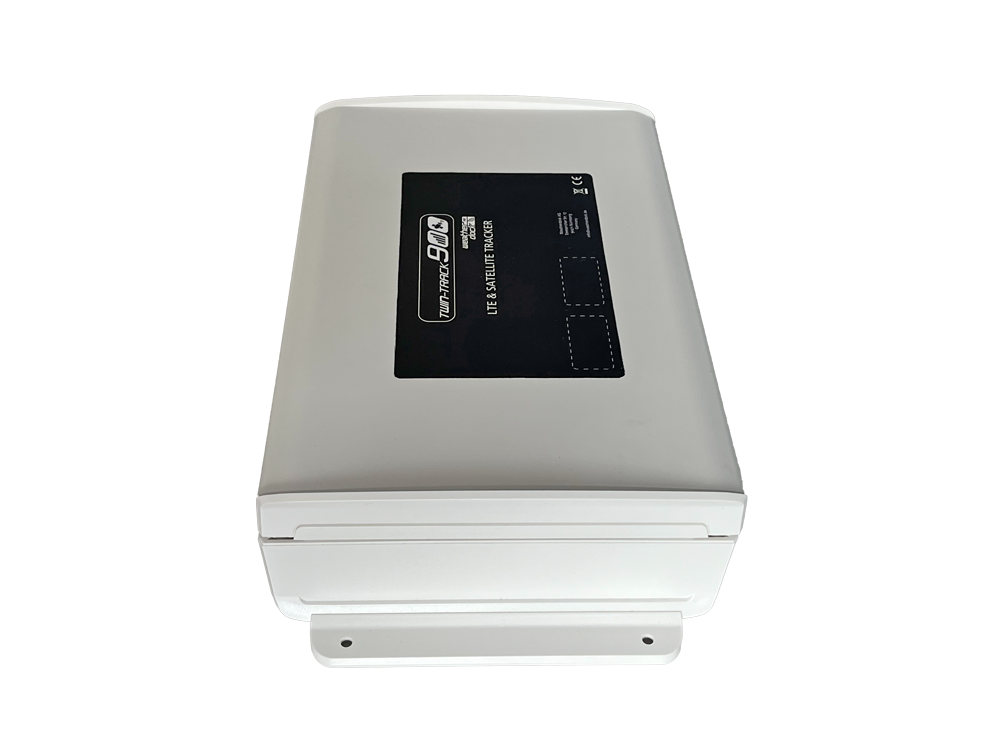

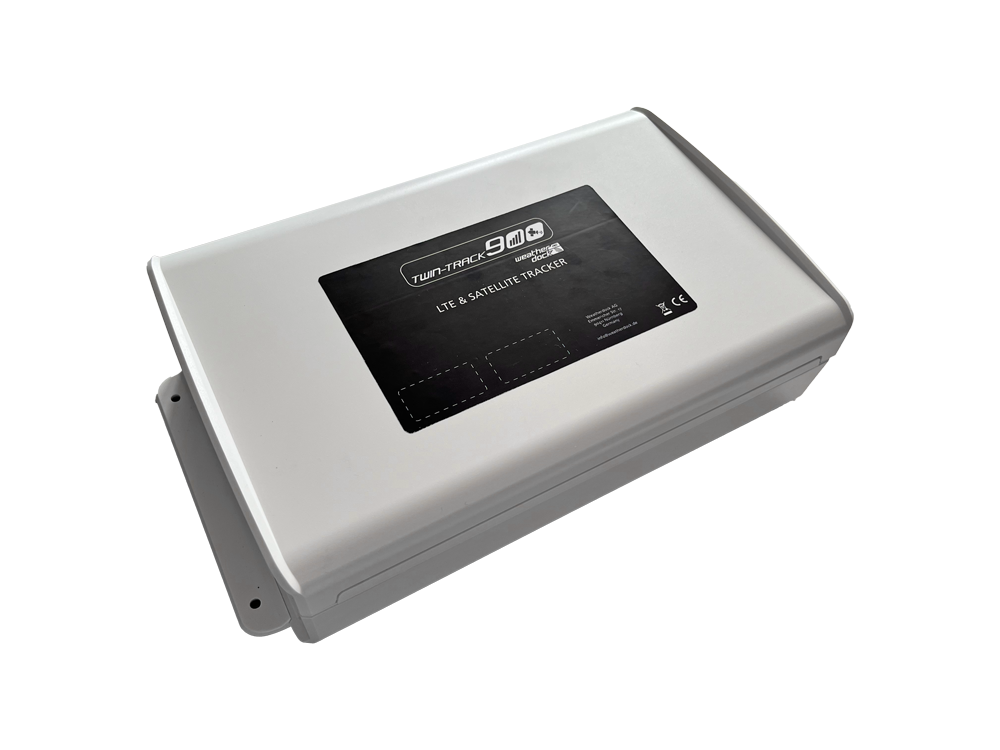

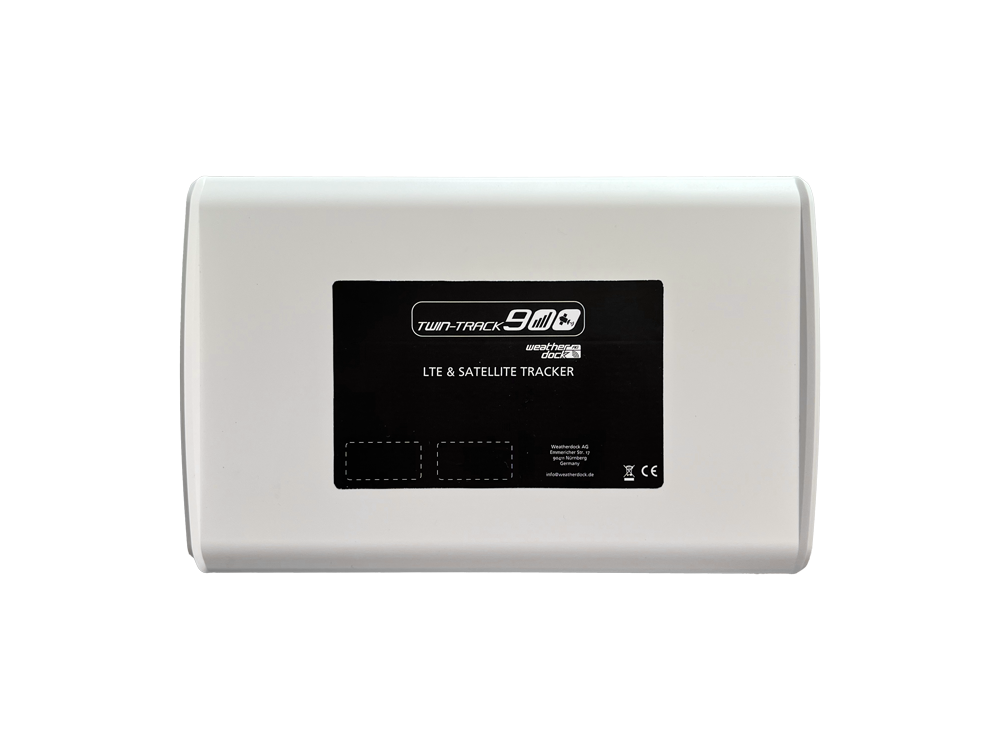

TWIN-TRACK900 (SAT + LTE)

• Global Connectivity: 4G LTE Cat 1bis, 2G fallback, optional Iridium satellite
• Advanced Location Tracking: Multi-GNSS (GPS, Glonass, Galileo, BeiDou), ±1 m accuracy
• Ultra Rugged: Waterproof (IP68), impact-resistant (IK08), GORE® vent for pressure equalization
• Rich I/O Suite: 4 digital inputs, 2 digital outputs, analog input, RS232, CAN, 1-Wire®, Wiegand
• Driver & Asset Security: Remote immobilization, GPS jamming detection, accident logging
• Local Intelligence: In-device geofences (up to 750), real-time alerts, internal buzzer
• Backup Battery
• Bluetooth® 5.2: Gateway for sensor and tag reporting
• Remote Management: Full OTA (over-the-air) configuration, updates, diagnostics
• Remote Immobilization
• Ultra rugged
• Cell tower locating, if GPS is not available (GPS Spoof improvement!)

Important Safety Information

⚠️ WARNING:
Before installing or operating the device, read and understand all safety instructions. Failure to follow these safety warnings may result in serious injury or death

1. General Safety Information

• Use the device only for its intended purpose and in accordance with relevant certifications.

• Comply with all local laws, safety regulations, and standards.

• Keep the device out of reach of children.

• Do not disassemble, repair, or modify the device.

• Do not use or store the device in explosive atmospheres.

• Operate the device only within the specified environmental conditions provided by the manufacturer.

• When installing wired devices, take precautions to prevent electric shock.

• Ensure that radio frequency (RF) emissions do not interfere with critical medical devices such as pacemakers.

2. Installation Safety

⚠️ WARNING: Improper installation may cause serious injury, equipment damage, or fire.

• Always mount the device securely using the supplied screws. Insecure mounting may lead to dislodging, especially in high winds or on moving vehicles.

• Secure all power and signal cables. Loose or unprotected cables can fray, fail, or cause short circuits.

• Use only mating IP67-rated connectors with molded backshells provided by the service provider. Inadequate sealing can result in moisture ingress, corrosion, and device failure.

• Proper grounding of the device is essential. Failure to ground the unit correctly can cause unexpected currents that pose a serious risk of shock or fire.

• Use only cables of correct gauge. Incorrect wire sizes may overheat, causing fire and serious injury.

• Use only qualified cables and accessories supplied or approved by the manufacturer or service provider.

• The device must be powered via an external fuse or a current-limited power source to prevent high current draw during unexpected shorts.

• Personal protective equipment (PPE) must be worn during installation.

• Always follow the official installation guide provided with the product.

3. Battery Safety

• Only use battery types approved by the manufacturer (e.g., Digital Matter).

• Do not expose batteries to extreme temperatures:

  • Below -30 °C or above +60 °C may cause battery leakage, overheating, or combustion.

• Do not puncture, crush, or cut batteries.

• Handle damaged batteries with care – they may emit toxic gases or corrosive substances. Avoid contact and never replace them in enclosed spaces.

• Only approved charging equipment may be used.

• Do not use any battery that appears swollen, leaking, or physically damaged.

• Dispose of batteries responsibly and in compliance with applicable laws and environmental regulations.

4. Transport and Storage

• Store the device in a cool, dry location, preferably in its original packaging.

• Avoid direct sunlight during storage.

• Ensure compliance with ICAO and IATA shipping regulations, especially when transporting devices with lithium batteries.

• Devices with LiPo batteries may lose charge over time in storage – recharge periodically if required.

5. Environmental Considerations

• Avoid prolonged exposure to sunlight or UV radiation.

• Make sure the Ingress Protection (IP) rating matches the intended operating environment.

• Keep the device away from water, moisture, and corrosive substances.

• At the end of its service life, dispose of the device responsibly, in accordance with local waste and recycling laws.

6. Maintenance and Inspection

• Regularly inspect the device for wear, corrosion, or mechanical damage.

• Clean only with a soft, damp cloth – do not use solvents or abrasive cleaners.

• Apply firmware updates as recommended by the manufacturer.

• Inspect mounting and wiring connections regularly using qualified personnel and suitable tools.

7. Emergency Procedures

⚠️ In the event of overheating, fire, or malfunction:

• Disconnect power immediately and contact technical support.

• Handle any signs of battery leakage or swelling with extreme care.

• If fire occurs, use extinguishers approved for lithium batteries (check the battery’s safety data sheet).

• Ensure that power supplies are properly fused to limit current in the event of a short circuit.

8. Special Environments

⚠️ Explosive Atmospheres / Blasting Areas

• Always turn off the device in areas marked “Turn off two-way radios” or “Blasting Area”.

• Do not operate the device in potentially explosive environments. Sparks from the device could ignite gases or flammable materials, causing explosion or fire.

⚠️ Medical Devices (e.g., Pacemakers)

• Individuals with pacemakers must:

  • Keep the device at least 8 inches (20 cm) away when in operation.

  • Immediately turn off the device if interference is suspected.

• Failure to comply may result in serious health risks.
