easyAIRDROP
3.090,80 €
incl. 19% VAT zzgl. Shipping costs
Available upon request
Please contact us at info@weatherdock.de
Out of stock
To support rescuers such as SAR airplanes or SAR helicopters.
The rechargeable VHF locator sends position and emergency telegram to all VHF receivers within range when activated.
- Product description
- Technical data
- Highlights
- Safety instructions (GPSR)
- Manufacturer information (GPSR)

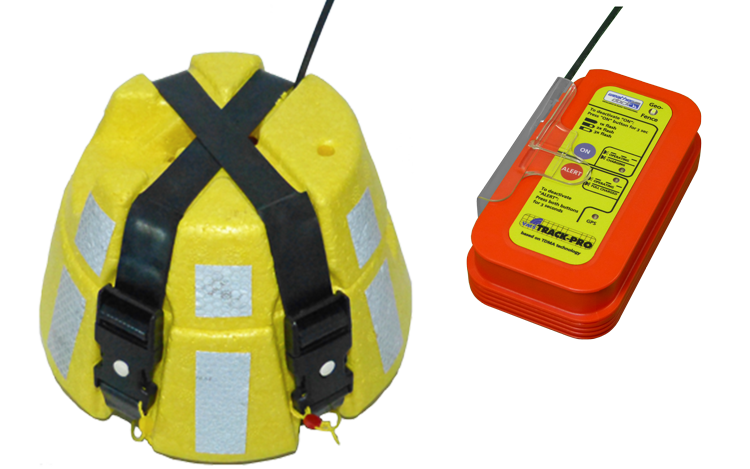

The easyAIRDROP Rechargeable contains the VHF locator unit vmsTRACK-PRO-CS to support rescue teams, such as SAR airplanes or SAR helicopters.
Packed in a waterprotected box, the easyAIRDROP with the built in VHF locator is ready to go for any situation. Just open the box, get the easyAIRDROP and throw it out. An automatic triggering function activates the internal VHF locator unit when it is submerged into the water.Being activated once, the unit transmits a current VHF emergency telegram to all VHF receivers within range. Position is updated every minute with COG, SOG and identification number of the unit.
Function

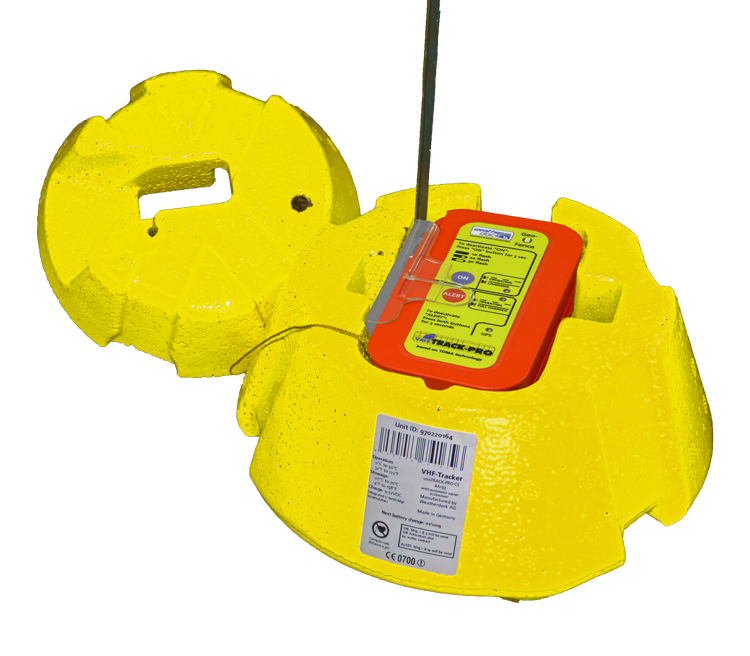

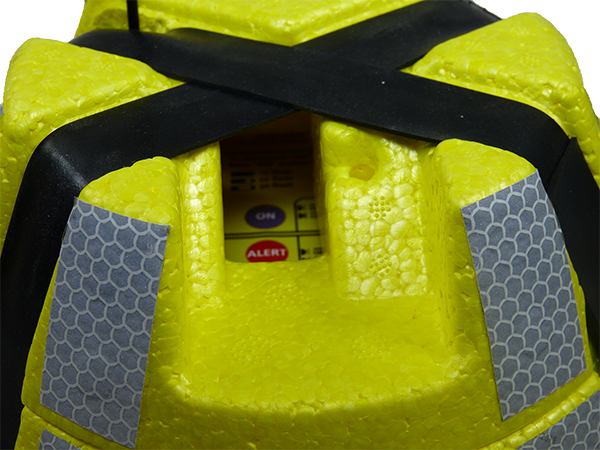

The air deployable housing is made of 2 fl oatable plastic parts and is kept together with 2 straps. A soluble tablet will fi x the straps until the whole unit is submerged into water. The VHF rescue locator unit vmsTRACK-PRO-CS is mounted inside the housing.By dissolving the tablet, the housing is opened, and the unit starts transmission by water activation.
A weight at the bottom will keep the easyAIRDROP in upright position for best possible radiation. With the long antenna radio range will be 9 to 12 nm to a vessel. SAR airplanes or helicopters will receive the signal in a distance of up to 80 nm by 500 feet fl ight level.
What is neseccary to run the easyAIRDROP?
The easyAIRDROP with the internal VHF rescue locator unit is ready: „grab and go“. To receive the transmitted signal, an AIS
capable chartplotter or PC software is required to display the rescue relevant data.
- Radiated RF power, approx. 0,5 W
- Dimensions of easyAIRDROP housing (h x w): 13 cm x 20 cm
- Weight: approx. 750 gram
- Operating conditions: -20°C – +65°C
- Battery lifespan: 5 years
- After rescue usage the whole package has to be re-fi tted together again and recharged for further usage.
- According to:
- German Federal Maritime Agency BSH
- SOLAS
- United States FCC
- United States Coast Guard
- Water activation when submerged
- Current GPS position via VHF – the fastest rescue possible
- Floatable due to special housing
- High radio range
- up to 12 nm (on water surface with 20 ft receiving antenna height)
- up to 80 nm (fl ight level 500 ft)
- Rechargeable
- Please keep the device out of the reach of children!
- The internal, powerful transmitter can potentially harm medical devices such as. B. Pacemakers may be impaired in their function!
- Incorrectly triggering an AIS/DSC emergency call is not a minor offense and can result in subsequent costs!
- Maintenance should only be carried out by authorized service providers/specialist dealers!
- Opening the device without authorization will void the warranty. Unauthorized or violent opening can destroy the device.
- Caution: There is a risk of explosion if the batteries are replaced with an unsuitable battery type. Dispose of used batteries according to the instructions.
- If the device is used at temperatures below 0°C or above 55°C, the capacity of the batteries will decrease. Keep the device away from heat or hot environments. The batteries inside the easy2-MOB could overheat, possibly even explode or burn and cause damage to the device and the surrounding area!
